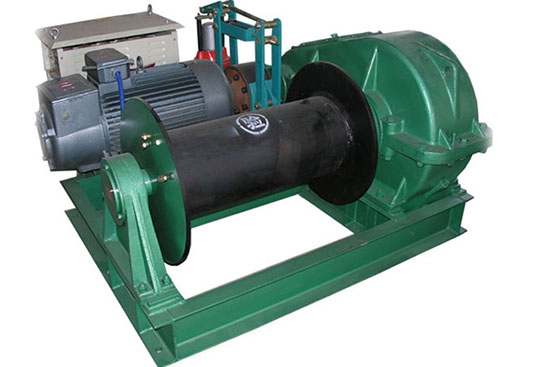

110V winch is winch machine that use 110V voltage. All types of our winch can be designed as 110V winch. You can choose the type of 110V winch according to your need. No matter what winch machine you choose, our company promises you that you will get a high quality 110V winch in an economical price.
Different types of our 110V winches
Our group provides you five types of common winch to lift and pull heavy loads, and all the winch has their own unique features. AQ-JM winch belongs to dual purpose winch. Since it can not only use on land including construction site, bridge building project and assembling project, but also used wildly on ships and coast to play an anchoring and mooring role. AQ-JK type winch is fast speed winch, which suits for long distance and fast speed transporting. Besides, you can also use it to match with a derrick and a portable frame. AQ-JKL winch plays a piling role in small and medium construction sites. It helps piling lands. Moreover, AQ-JKD type 110V winch has smallest size of our group, you can choose it if you want to save your plant’s space. Lastly, it you want to transport large and super large steel structure, AQ-JMM winch will be your best choice, its constant winch rope and perfect balance ability contribute to your transport task.
AQ-JM 110V Winch
Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JK 110V Winch
Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JKL 110V Winch
Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JKD 110V Winch
Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JMM 110V Winch
Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase
Except common 110V winch mentioned above, you can choose cable winch and mine winch either. Cable winch can be used to store cable and lay cable. And mine winch is winch machine that is able to use in or out a mine (both metal mine and non-metal mine are allowed). If you have any explosive proof function of you winch, tell us when contact us, we will design your customized winch machine.
110V Cable Winch
Occasions:port, mine, ship;
Power supply:
220-690V,50/60HZ,3Phase;
Accept your customization
110V Mine Winch
Speed: 1.3 m/s
Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm
Accept Your Customization
| Technical Parameter of AQ-JM 110V Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameter of AQ-JK series 110V Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKL series 110V Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370x1650x1210 | 1200 |
| AQ-JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690x1740x1200 | 1800 |
| AQ-JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300x2100x1650 | 3000 |
| AQ-JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350x2100x1650 | 3200 |
| AQ-JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440x2500x1800 | 5500 |
| AQ-JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590x2540x1800 | 5800 |
| Technical Parameter of AQ-JKD Series 110V Winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JKD1.60 | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JKD2.0 | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
| Technical Parameter of AQ-JMM Series 110V Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JMM10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 30 | 1980x2650x850 | 6000 |
| AQ-JMM16 | 160 | 11 | 1000 | 34.5 | YZR225M-6 | 45 | 3350x1920x1320 | 9500 |
| AQ-JMM20 | 200 | 11 | 3600 | 39 | YZR280S-6 | 55 | 3500x1960x1320 | 10000 |
| AQ-JMM32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 75 | 4330x2350x1760 | 16000 |
| AQ-JMM55 | 550 | 5 | 2000 | 60 | YZR280M-6 | 75 | 5000x2800x1900 | 22000 |
Welcome to get your free inquiry. We will reply to you in 12 hours!
