Ellsen 12 tons winch for sale

12 tons winch

12 tons winch is winch machine to lift and pull loads of 12 tons. Ellsen provides you three types of 12 tons winches. You can choose what you want based on your need. All the three types of winch is designed according to certain task purpose.

Product Detail

Features of each type of Ellsen winch

You can choose power system of electricity and hydraulic power. Basically, hydraulic power is used in ship or coast, because electricity power system has less water proof ability than hydraulic power system. And you can use electricity power system in construction site in land.

JM 12 tons winch

Ellsen 12 tons winch fro sale

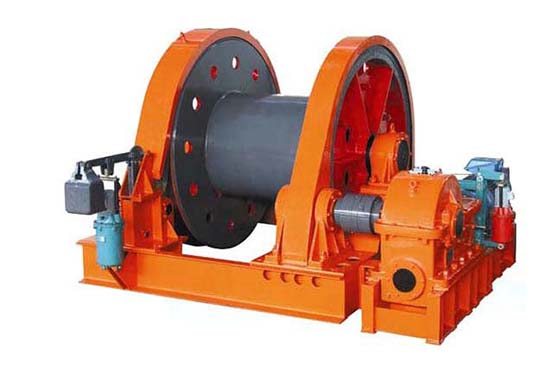

Ellsen JM 12 tons winch


JM 12 Tons Winch

Loading capacity: 30 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 12 tons winch for sale
Ellsen JMM 12 tons winch


JMM 12 Tons Winch

Loading capacity: 30 t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

Ellsen 12 tons winch for sale
Ellsen 12 tons mine winch


12 Tons Mine Winch

Speed: 1.3 m/s
Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm

Accept Your Customization

Get a Free Quote

JM 12 tons winch is used in construction site, construction and installer, mining, civil construction and installation project of the factory, all kinds of equipment installation including bridges, ports, terminals. JM type winch is fit for high accuracy and slow speed transport task. Moreover, it can be used on ships and coast to take anchor and moor task.

JMM 12 tons winch

JMM 12 tons winch is friction type winch. When it works, winch rope does not toe to winch drum, it relies on the friction between winch drum and winch rope to transport loads. JMM winch is special designed for long distance lifting and pulling transport. It mainly placed in large and super large steel structure and steel winch rope pulling task. JMM winch machine is stable and the speed of it is constant.

12 tons mine winch

We provide you mine winch that can be used inside or outside metal mine and non-metal mine. You can choose you mine winch according to the types of your mine. No matter you have a copper mine, coal mine, zinc mine or an iron mine, we will give you high quality one with cheap price. Moreover, if you want your mine winch has explosive proof function, contact us to get your unique customization.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM 12 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JMM Series 12 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
Model TYPE Tensile
force of
wire rope
Wire
rope
Overall dimension The
whole
weight
No. Diameter Width Lifting
man
Lifting
material
Max.diameter Breaking
force
Speed Legnth Width Height
Pcs mm KN mm KN m/s mm kg
JTK-0.8×0.6 1 800 600 / 15 14 97.5 1.3 3×2.2×1.3 2100
JTK-1.0×0.6 1000 800 15 12 97.5 1.7 3.4×2.1×1.5 3300
JTP-1.2×1 1 1200 1000 15 21 14 137 2/2.5 5x5x2.75 9562
JTP-1.2×1.2 1200 1.5/1.9 5.2x5x2.75 9585
2JTP-1.2×0.8 2 1200 800 15 21 14 137 2.5/3.0 6.1x5x2.75 11700
2JTP-1.2×1.0 1000 1.5/1.9 6.1x5x2.75 11900
JTP-1.6×1.2 1 1600 1200 31 42 20 279 2/2.5 6.4×5.4×2.9 13538
JTP-1.6×1.5 1500 1.5/1.9 6.7×5.4×2.9 14128
2JTP-1.6×0.9 2 1600 900 31 42 20 279 3.0/4.0 7.1×5.4×2.9 16760
2JTP-1.6×1.2 1200 2/2.5 7.4×5.4×2.9 17370
JK-2×1.5 1 2000 1500 44 60 24 396.5 4.0/5.0 8.15×6.86×2.75 24955
JK-2×1.8 1800 2.5/3.2 8.4×6.86×2.75 25396
2JK-2×1 2 2000 1000 44 61 24 396.5 4.0/7.0 9.48×6.97×2.75 28955
2JK-2×1.25 1250 2.5/3.2 9.73×6.97×2.75 30355
JK-2.5×2 1 2500 2000 69 90 30 621 3.8/4.8 10.26×9.12×3.05 35200
JK-2.5×2.3 2300 3.0/3.4 10.56×9.12×3.05 36040
2JK-2.5×1.2 2 2500 1200 69 83 30 621 8.7/4.9 11.56×9.12×3.05 46325
2JK-2.5×1.5 1500 2.5/4.0 11.86×9.12×3.45 47752
JK-3×2.2 1 2500 2200 100 130 36 900 4.6/5.9 12.4×10.8×2.85 52540
JK-3×2.5 2500 3.0/4.1
JK-3.5×2.5 1 3500 2500 136 170 42 1230 5.4/6.7 14.18×10.65×3.95 73940
JK-3.5×2.8 3.5/4.8
2JK-3×1.5 2 3000 1500 100 135 36 900 5.9/10.0 14.1×10.8×3.45 58750
2JK-3×1.8 1800 3.0/4.7 14.7×10.8×3.45 60250
2JK-3.5×1.7 2 3500 1700 136 170 42 1230 6.7/12.0 15.9×10.65×3.95 77830
2JK-3.5×2.1 2100 3.5/5.3 16.7×10.65×3.95 79630
