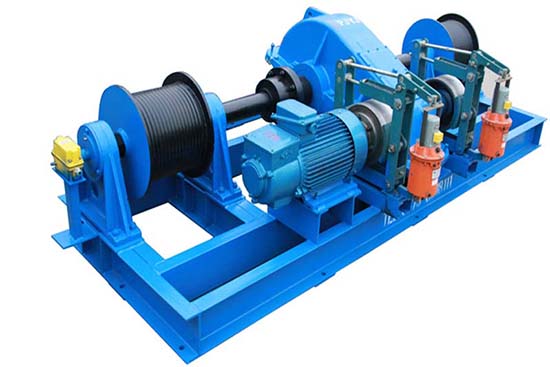

120V winch refers to winch voltage of 120, all types of winch machine of Ellsen group can be designed as 120V winch. You can choose any winch of 120V. Ellsen group provides you five types of winch to make a choice. And each Ellsen winch has its own features and advantages. Next are the introduction in detail.

Product Detail

Features of Ellsen 120V winches

Except lifting and pulling ability, each type of Ellsen 120V winch has their own features. Firstly, JM 120V winch is the most common used winch in construction site, bridge building project, and installer, for its high accurate position assembling ability, it even can be used in medium electricity project. This series winch can also be placed on ships and coast to take an anchoring and mooring role. If you want a land and water dual purpose winch, JM winch will be your best choice.

Ellsen 120V winch for sale
Ellsen JM 120V winch


JM 120V Winch

Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Then, you may interested in JK 120V winch. This type of winch is fast speed winch. It seems similar as JM type winch, however, it is more suitable for fast speed transport. Except that, it can be used to match with derrick, portable frame and crane as a main hoister. If you want the function, why not try one?

Ellsen 120V winch for sale
Ellsen JK 120V winch


JK 120V Winch

Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Thirdly, we provide you JKL 120V winch, this type of winch can take responsibility as a piling engine. It can do free falling movement from high altitude to level soil.

Ellsen 120V winch for sale
Ellsen JKL 120V winch


JKL 120V Winch

Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Moreover, if you want a small size winch, you can choose JKD 120V winch. It has compact structure, which helps save plant space largely. More important, it is the new type low noise and high balance winch.

Ellsen 120V winch for sale
Ellsen JKD 120V winch


JKD 120V Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Finally, Ellsen will give you JMM type 120Vwinch for long distance, large and super large steel structure transport. This types of winch is stable when operating, besides, its winch rope is constant when using.

Ellsen 120V winch for sale
Ellsen JMM 120V winch


JMM 120V Winch

Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

Why choose Ellsen manufacturer?

Ellsen winches have many advantages, except unique function of each type of winch, they are easy to operate and maintain. Then, Ellsen will give you the most economical price with high quality. Lastly, as a professional supplier, Ellsen promise you will get a warm service no matter purchasing process or after sale service.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM 120V Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JK series 120V Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series 120V Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
Technical Parameter of JKD Series 120V Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JKD0.75 7.5 100 9.3 3 900x340x400 165
JKD1.25 12.5 120 11 7.5 1140x400x450 315
JKD1.60 16 160 12.5 7.5 1200x400x480 350
JKD2.0 20 190 13 13 1400x470x548 510
Technical Parameter of JMM Series 120V Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
