30 tons winch

30 tons winch

You can choose three types of 30 tons winch from Ellsen manufacturer. All the three types of winch machine can be designed into electricity power and hydraulic power. And except basically lifting and pulling ability, each of the 30 tons winch has unique function. You are welcomed to choose what you want according to your needs. Next are the features of each winch.

Product Detail

Features of Ellsen 30 tons winch

You can choose 30 tons winch from Ellsen JM 30 tons winch, JMM 30 tons winch and Ellsen 30 tons mine winch. No matter what types of winch machine you choose Ellsen promise to give you high quality winch in an economical price.

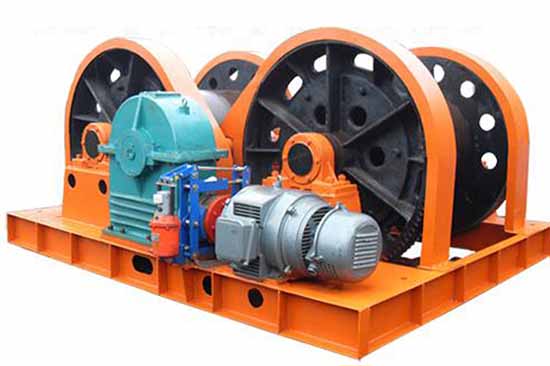

JM 30 tons winch

Ellsen 30 tons winch for sale
Ellsen JM 30 tons winch


JM 30 Tons Winch

Loading capacity: 30 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen JM 30 tons winch adopts gear reducer speed driven system, this type of winch machine is especially suit for high accurate position transporting task. Since it belongs to slow speed winch, 30 tons JM winch is able to keep stable when it carry heavy loads. Besides, this type of winch can be used on ships and coast to anchor and moor. You can get a dual purpose winch if you choose JM type Ellsen 30 tons winch.

JMM 30 tons winch

Ellsen 30 tons winch for sale
Ellsen JMM 30 tons winch


JMM 30 Tons Winch

Loading capacity: 30 t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

JMM 30 tons winch refers to winch that transport loads by the friction pressure between winch drum and winch rope. JMM type winch is suit for the transporting and pulling of large and super large steel structure, steel cable and wire rope. It can benefit long distance for its constant speed and stable ability.

30 tons mine winch

Ellsen 30 tons winch for sale
Ellsen 30 tons mine winch


30 Tons Mine Winch

Speed: 1.3 m/s
Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm

Accept Your Customization

Get a Free Quote

Mine winch is winch that can be used in or out metal and non-metal mine. You can place it in your copper mine, zinc mine, iron mine and coal mine. We can make your non-standard mine winch according to your special need. For example, if you want an explosive proof winch, we will design an anti-explosion winch according to the condition and variety of your winch.

Wireless remote control 30 tons electric lifting winch for sale

In the industry, the wireless remote control 30 tons electric winch has wide application. It is widely used for hoisting and dragging the weight at different working sites, or for pulling boats. It mainly includes the following types, construction winch, marine winch, anchor winch, mine winch, building winch, cable winch, etc. According to the speed and structure, it contains JM winch, JMM winch, JK winch, JKD winch, JKL winch. All the design is based on Chinese Winch Standard.

High duty 30 ton electric power industrial winch

As a traction heavy and light lifting equipment, the industrial winch is designed with a reel winding wire rope or chain lift. The winch can be lifted vertically, horizontally or titled the material. It can be used alone, and can be used as mechanical components for lifting, road construction and mine lifting machinery. There are two types,the slow speed winch and fast speed winch. The slow speed is about 7-12m/min, fast speed is about 30m/min. And Ellsen can customize the speed according to customers’ practical demands.With the advantages of simple operation, large rope around, easy move and wide use, this functional winch has application in many fields, such as construction, water conservancy projects, forestry, mining, port to lift or dragging material.

High efficiency of 30 ton lifting winch

JM slow series is driven by gears reducer. It is mainly used for hoisting pull and loading tow the weight drop. For example, all kinds of large and middle concrete con-structure of steel, installation and dis-assembly of mechanical equipment. It is suitable for construction and installation engineering of construction installation, enterprise, mining area, factory.

Jk fast series winch is mainly used for material lifting and traction, the weight drops during construction, small equipment installation of construction mine area lifting factory.

High safety level of 30 tons construction winch

  • Electric current overload protection
  • Weight overload protection function
  • Limit switch
  • Low voltage protection

Ellsen provides customized service for 30 tonne winch

More compact structure, small gap, high precision

Made of high quality alloy steel forgings, the structure design is reasonable

The machining accuracy meets national standards

Bearing quality and improve service life

Low energy consumption, performance is superior, the reduction efficiency is as high as ninety-six percent, small vibration, low noise

Using the new sealing device, good protective performance, strong adaptability to the environment, can be used in harsh environments, such as corrosion and moisture work continuously.

High quality 30 ton truck winch towing winch hydraulic winch from China factory

Our winches are used on rescue and recovery vehicles, cargo truck trailers and heavy equipment transporters, armoured flighting vehicles, off-load vehicles, tractors, loaders and earthmovers, fire engines, high tension line stringing rigs and many other applications.

1.Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable
2.Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3.The product is featured by its small size, compact construction and high transmission efficiency.
4.Free wire releasing function
5.Adopt motor with long use life
6.The installation bracket can be manufacturer according to the customers’ requirement
7.According to the requirement of customers, manufacturer the balance valve and shuffle valve special for this winch.
8.Adopt manual, pneumatic clutch equipment
9.Manufacture according to National Military Hydraulic Winch Standard

Structure characteristic

Main structure includes bottom frame, electric cam controller, electric hydraulic thrust brake, gear box, rope drum, electric motor, wire rope and so on. Electromotor drive is transferred to gear box by elastic coupling, gears drive rope drum positive and negative rotate.

Running and stop of rope drum is finished by electric hydraulic thrust brake, electric hydraulic thrust brake and electromotor work in-phase, when power turns off or looses, can brake rope drum, working fast, safe.

The rope drum of electric winch, if the wire rope is short, there are some grooves, if the wire rope is very long, the drum is smooth.

The driven motor of electric winch, the insulation grade is F, the protection class is IP54, or higher standards.

The brake system of winch, it is electric motor drive and hydraulic type pusher, it is reliable.

The speed reducer of electric winch, it is heavy duty type reducer, it is strong and reliable.

Why choose Ellsen group as your supplier?

Firstly, Ellsen group is the leading winch supplier in China, we promise to give you best and professional service. Then, we will give you high quality winch in an economical price. Interested in Ellsen winch? Click your free inquiry and get a winch for yourself now.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Your Name (required)

Your Email (required)

Your Phone

Your Country

Your Message (required)

Parameters

Technical Parameter of JM 30 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JMM Series 30 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
Model TYPE Tensile
force of
wire rope
Wire
rope
Overall dimension The
whole
weight
No. Diameter Width Lifting
man
Lifting
material
Max.diameter Breaking
force
Speed Legnth Width Height
Pcs mm KN mm KN m/s mm kg
JTK-0.8×0.6 1 800 600 / 15 14 97.5 1.3 3×2.2×1.3 2100
JTK-1.0×0.6 1000 800 15 12 97.5 1.7 3.4×2.1×1.5 3300
JTP-1.2×1 1 1200 1000 15 21 14 137 2/2.5 5x5x2.75 9562
JTP-1.2×1.2 1200 1.5/1.9 5.2x5x2.75 9585
2JTP-1.2×0.8 2 1200 800 15 21 14 137 2.5/3.0 6.1x5x2.75 11700
2JTP-1.2×1.0 1000 1.5/1.9 6.1x5x2.75 11900
JTP-1.6×1.2 1 1600 1200 31 42 20 279 2/2.5 6.4×5.4×2.9 13538
JTP-1.6×1.5 1500 1.5/1.9 6.7×5.4×2.9 14128
2JTP-1.6×0.9 2 1600 900 31 42 20 279 3.0/4.0 7.1×5.4×2.9 16760
2JTP-1.6×1.2 1200 2/2.5 7.4×5.4×2.9 17370
JK-2×1.5 1 2000 1500 44 60 24 396.5 4.0/5.0 8.15×6.86×2.75 24955
JK-2×1.8 1800 2.5/3.2 8.4×6.86×2.75 25396
2JK-2×1 2 2000 1000 44 61 24 396.5 4.0/7.0 9.48×6.97×2.75 28955
2JK-2×1.25 1250 2.5/3.2 9.73×6.97×2.75 30355
JK-2.5×2 1 2500 2000 69 90 30 621 3.8/4.8 10.26×9.12×3.05 35200
JK-2.5×2.3 2300 3.0/3.4 10.56×9.12×3.05 36040
2JK-2.5×1.2 2 2500 1200 69 83 30 621 8.7/4.9 11.56×9.12×3.05 46325
2JK-2.5×1.5 1500 2.5/4.0 11.86×9.12×3.45 47752
JK-3×2.2 1 2500 2200 100 130 36 900 4.6/5.9 12.4×10.8×2.85 52540
JK-3×2.5 2500 3.0/4.1
JK-3.5×2.5 1 3500 2500 136 170 42 1230 5.4/6.7 14.18×10.65×3.95 73940
JK-3.5×2.8 3.5/4.8
2JK-3×1.5 2 3000 1500 100 135 36 900 5.9/10.0 14.1×10.8×3.45 58750
2JK-3×1.8 1800 3.0/4.7 14.7×10.8×3.45 60250
2JK-3.5×1.7 2 3500 1700 136 170 42 1230 6.7/12.0 15.9×10.65×3.95 77830
2JK-3.5×2.1 2100 3.5/5.3 16.7×10.65×3.95 79630
