Ellsen 8 tons winch for sale

8 tons winch

You are welcome to choose your 8 tons winch among five types of Ellsen winch machine. We will introduce to you the brief features of each type. Ellsen provides you winch machine for three types of different power system. You may choose electricity power, hydraulic power or diesel power system. Besides, we design Ellsen winch machine into different models according to its applied occasions. You can choose what you want below.

Product Detail

Features of Ellsen 8 tons winches

Four series of Ellsen winch machine has its own features. Here we introduce you each type according to whether you use it in land or in ships or coast. Firstly, for the most special one. You may choose JM winch machine if you want to use a winch both in land and in ships. JM type winch is special designed dual purpose winch that used in both land or near water. When you use it in land in construction site, bridge building project or installer, it can so common lifting and pulling task; while you use it in ships or coast, it plays a ship winch role to in charge of anchoring and mooring. Then, if you want to use a winch to match with a portable frame or derrick as a main hoist, JK type 8 tons may be your best choice. What is more, Ellsen develops a kind of JKL piling winch to take responsibility of free falling piling task. If you want an anchoring and mooring winch only, capstan winch is your best choice, more important, we will make your own unique customized winch machine if you have any special needs and requirement. Lastly, if you want to use a winch inside or outside a metal mine, we advise you to choose a mine winch. We will design you unique mine winch according to the type of your mine, for example, if you have a coal mine, we will design your coal mine winch based on the coal mine requirement. The same as a copper mine, a zinc mine or an iron mine.

Ellsen 8 tons winch for sale

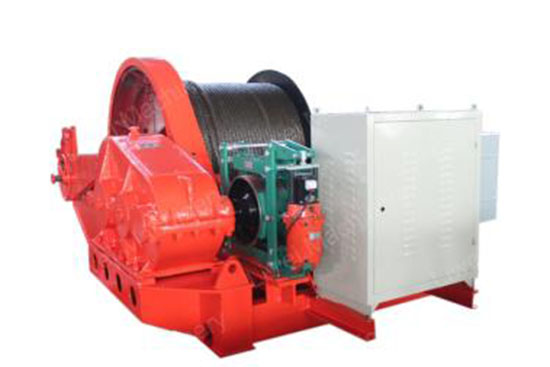

Ellsen JM 8 tons winch


JM 8 Tons Winch

Loading capacity: 8 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 8 tons winch for sale
Ellsen JK 8 tons winch


JK 8 Tons Winch

Loading capacity: 8 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 8 tons winch for sale
Ellsen JKL 8 tons winch


JKL 8 Tons Winch

Loading capacity: 8 t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 8 tons winch for sale
Ellsen 8 tons capstan winch


8 Tons Capstan  Winch

Type: D(Y)J5
Warping load: 50 KN
Warping speed: ≥18 m/min
Wire Dia: φ11 mm
Electric: 3/1.2 kw

Get a Free Quote

Ellsen 8 tons winch for sale
Ellsen 8 tons mine winch


8 Tons Mine Hoist Winch

Speed: 1.3 m/s
Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm

Accept Your Customization

Get a Free Quote

Why choose Ellsen as you supplier?

Ellsen is always playing a leading role in winch business in China. We are professional, you will get a professional service both in purchasing process and after sale service. Then, we promise to give you cheap price with high quality winch. If you have any problems in using our winch, you may contact us, we will help you solving your problems soon.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series  8 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JK series 8 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series 8 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
