Winch machine as a traditional lifting and pulling device has new development in modern society. And our winch does great job in winch industry. With the hard work of winch machine experts and technology improvement, our group push out customer like you an economical winch, cheap winch, especially for who want cheap price of high quality winch.
Features of different types of cheap winch
Our group provides you several types of cheap winch, you may get what you want after reading the features of each winch. Here are the brief introduction and features.

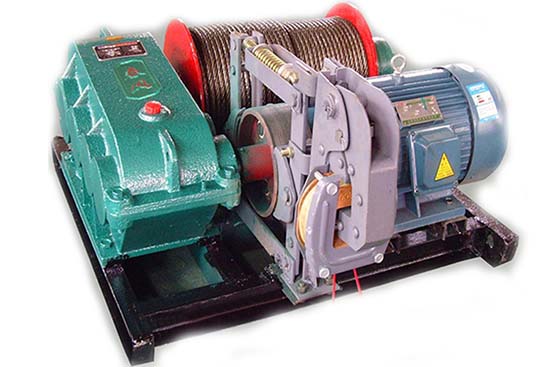

AQ-JM cheap winch
AQ-JM Cheap Winch
Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;
(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JM cheap winch is a kind of dual purpose winch in land or near coast. In land, it can be used in many occasions like construction sites, mine lot, installation firm, civil construction and bridge building project. When it used in land, it plays a role to left, pull and drag loads in horizontal direction and vertical direction. While when it is used in sea or near coast, it is used to anchor and moor. If you have loads to carry in land or sea, AQ-JM type cheap winch is your best choose.
AQ-JK cheap winch
AQ-JK Cheap Winch
Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min;
(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JK cheap electric winch plays two roles respectively in different occasion. In construction site, it pull and lift loads. And it can be used in crane, derrick and portable frame as main hoist. You can use it in construction site, mine lot and civil construction.
AQ-JKL cheap winch
AQ-JKL Cheap Winch
Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JKL cheap winch has the function that any other winch machine has not. It can do piling work in construction site. So except lifting and pulling work, if you have any piling task to do, why not choose our AQ-JKL cheap winch?
AQ-JKD cheap winch
AQ-JKD Cheap Winch
Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JKD cheap winch has different transmission device from any other winch, it adopts planetary transmission, which makes the reducer system more compact, safe and high efficient. If the lifting space in limited of your plant, it is good to choose a space saving winch.
Miniature cheap winch
Miniature Cheap Winch
Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
Miniature cheap winch seems like AQ-JKD cheap winch in the appearance. The motor and winch rope are in the same axis, so it can moves less circles than other cheap winch. It is special designed for narrow space lifting and pulling, such as home and factory. You can used it in construction site and mine lot.
Capstan cheap winch
Capstan Cheap Winch
Type: D(Y)J5
Warping load: 50 KN
Warping speed: ≥18 (m/min)
Wire Dia: φ11 (mm)
Electric: 3/1.2 (kw)
Capstan winch is used in ships and coast to anchor and moor. It has three speed, and you can choose among single speed capstan cheap winch, double speed capstan cheap winch and three capstan cheap winch. This type of cheap is easy to carry and operate. Moreover, our company provides you standing type capstan cheap winch and horizontal type capstan cheap winch. You can choose the speed and standing type of according to your need.
Why choose AIMIX supplier?
You may choose a winch because of its cheap price. But why are you should choose AIMIX if there are other company that gives you cheap price. Firstly, our company promises you the best quality in the same price. We provide you high quality with cheap price. Then, our company has good reputation in winch industry, we will be always give best service with sincere heart. Lastly, you will get a long term service period of you winch machine, you can contact us if find some technical problems.
| Technical Parameter of AQ-JM Series Cheap winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameter of AQ-JK series Cheap Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKL series Cheap winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370x1650x1210 | 1200 |
| AQ-JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690x1740x1200 | 1800 |
| AQ-JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300x2100x1650 | 3000 |
| AQ-JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350x2100x1650 | 3200 |
| AQ-JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440x2500x1800 | 5500 |
| AQ-JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590x2540x1800 | 5800 |
| Technical Parameter of AQ-JKD Series Cheap winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JK0.75D | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JK1.25D | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JK1.60D | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JK2.0D | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
