Crane winch is widely used in many construction site. Crane winch has an obvious advantage than any other type winch. It not only can use alone to lift and pull loads, but also it can be used on double girder crane as trolley to lift loads.
Our crane winches are as ideal for demanding process use as they are for assembly and maintenance. Flexible enough for almost any industrial setting, they combine the latest in advanced design with hardy electronics and a sharp computer intelligence that gives you total control over your materials handling.
Features of our crane winch
There are many types of crane winching machine provide by AIMIX manufacturer. Firstly, dividing crane winch according winch drum, it can be single winch drum type and double winch drum type. If divide winch based driven system, it can be divided into reducer box type and friction type. The traction can be 0.5 ton, 1 ton, 2 tons, 3 tons, 5 tons and 15 tons. Generally speaking, for reducer box type driven, the pulling speed is low, but the pulling power is big. And when the loads be laid down, the whole winch system is safe. And this type crane used to be used in the lift and assemble of build equipment. While friction types crane is fast, but the pull power is low, and it is widely used to transport and lift loads in building construction site.
Different types of crane winch machine
Our company provides you five types of crane winch machine. There are AQ-JM crane winch, AQ-JK crane winch, AQ-JKL type crane winch and AQ-JMM winch. They have different functions and advantages. Next is the brief introduction in detail.
AQ-JM crane winch

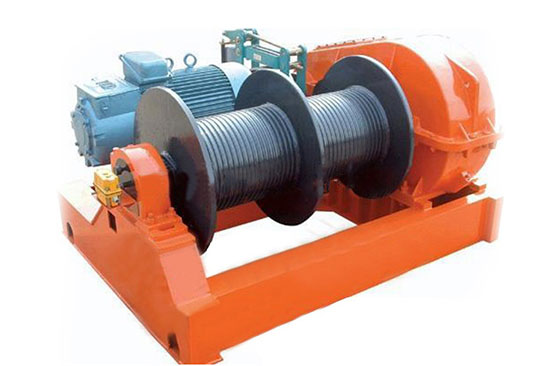

AQ-JM Crane Winch
Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;
(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JM type crane winch seems like trolley on double girder crane. But it has different function. This kind of crane winch consists of motor, coupling, gear box and drum. The four basic part are installed in the winch mount. You can use this model to pull, lift and drag loads in construction site, port and bridge building project. Moreover, AQ-JM type winch can be used in ship or near coast place to take anchoring and mooring task.
AQ-JK crane winch
AQ-JK Crane Winch
Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min;
(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
This type of crane winch is used as the main lifting and pulling device in cranes and derrick in construction sites. It is the special crane winch for derrick and portable frame.
AQ-JKL Crane Winch
AQ-JKL Crane Winch
Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
It can be used to lift and pull loads in construction sites and factories. Moreover, it usually is used in port, wharf and basic construction site to do piling work. AQ-JKL type crane winch consist of motor, inner reducer, drum, main axis, clutch, nipper brake and support. AQ-JKL model winch is able to lift loads and set it to fall free, in this way, it finish the piling task. And it can put winch rope in a fast speed. Clutch and nipper brake are in an open state for the most time. It realizes the stop and start of nipper brake and clutch by two-three way reversing valve. AQ-JKL winch has compact structure, and it is easy to operate.
AQ-JMM crane winch
AQ-JMM Crane Winch
Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase
AQ-JMM type crane winch has the largest working ability, it can accept wire rope length under 5000 meters. If you want to do task in large mine and factories, AQ-JMM winch is your best choice. It has stable lifting and pulling speed.
Why choose AIMIX manufacturer?
AIMIX will give you best service no matter in the purchase process or the after sale service. One of the most important point is that AIMIX insists to provide you the best quality crane. For the fix of winch rope, we add a PT screw, and it is more stable and safe than other fixed ways. We adopt swimming star gear shaft and driver blade to drive winch drum directly. Which makes the changing of winch rope and winch direction. We use high quality bearings that has long service time and lower noise. For mount, we use high quality steel which is stamped and formed integrated, it is convenient to use in crane and lifter.
| Technical Parameter of AQ-JM Series Crane winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameter of AQ-JK series Crane Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKL series Crane winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370x1650x1210 | 1200 |
| AQ-JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690x1740x1200 | 1800 |
| AQ-JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300x2100x1650 | 3000 |
| AQ-JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350x2100x1650 | 3200 |
| AQ-JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440x2500x1800 | 5500 |
| AQ-JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590x2540x1800 | 5800 |
| Technical Parameter of AQ-JKD Series Crane winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JK0.75D | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JK1.25D | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JK1.60D | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JK2.0D | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
| Technical Parameter of AQ-JMM Series frictional Crane winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JMM10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 30 | 1980x2650x850 | 6000 |
| AQ-JMM16 | 160 | 11 | 1000 | 34.5 | YZR225M-6 | 45 | 3350x1920x1320 | 9500 |
| AQ-JMM20 | 200 | 11 | 3600 | 39 | YZR280S-6 | 55 | 3500x1960x1320 | 10000 |
| AQ-JMM32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 75 | 4330x2350x1760 | 16000 |
| AQ-JMM55 | 550 | 5 | 2000 | 60 | YZR280M-6 | 75 | 5000x2800x1900 | 22000 |
