Drum winch for boats is equipment on boats, port or coast, our company provides four types of boat winch for to meet your different requirement. There are the following winches our manufacturer: winch for anchoring; winch for mooring; winch for towing and dual purpose winch for both anchoring and mooring. Read the following introduction and see the pictures below to find the one fits for your industry.
Introduction of our boats drum winch
There are four types winch may meet your need. Read the following introduction, if you have any question, contact us.
Drum Anchor Winch
Dia of anchor chain: ø12mm – ø128mm
Speed: 9-11 m/min
No. of drum: single or double
Ceritificate: BV, ABS, DNV, RMRS, etc
Boat drum winch for anchoring
Anchor winch is machine for boat to anchor, our company provides you wore rope anchor winch and chain anchor winch. The common speed is 10 m/min. This machine has single chain wheel and double chain wheel two types, choose one meet you need best. To get brief quotation, you should provide the weight, diameter and length of chain or wire rope. This machine has three power including electricity, hydraulic pressure and diesel.
Boat drum winch for mooring
Drum Mooring Winch
Load capacity: 10 ton – 50 ton
Drum capacity: 100m- 1000m
Speed: ≤15m/min
No. of drum: single or double
HPU: provided as customized
This equipment refers to winch for mooring boat, it can make your boat stay stable on coast. This winch is fixed on coast. It seems like towing winch, but with smaller tension force (5 tons – 50 tons). Power system includes hydraulic and electric power.
Boat drum winch for towing
Drum Towing Winch
Load capacity: 5 ton – 300 ton
Drum capacity: 200m- 1500m
Speed: 4.5m/min – 20 m/min
No. of drum: single or double
Certificate: BV, ABS, DNV, RMRS, etc
This winch is for towing boat, it can be install on one ship to tow another ship. For this unique function, this model winch has a larger pulling force (10 tons – 200 tons). You can choose hydraulic pressure and electric type. The speed is 10 m/min, another speed is available.

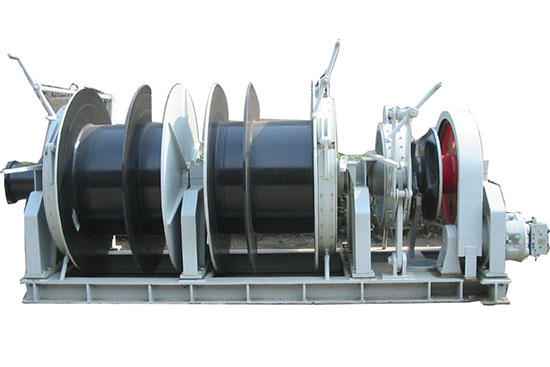

Anchor and mooring winch for boats
Anchor Mooring Winch
Load capacity: 1 ton-100 ton
Drum capacity: 100- 1000 m
Power supply: 380V-460V, 50/60Hz, 3Phase
Dia of anchor chain: ø12mm – ø128mm
Customized service provided
This machine refers to dual purpose equipment not only can anchor, nut also can moor. But this one, you can get a two in one anchor and mooring winch. It consists both chain wheel and drum, which means you can tie both chain wheel and wire rope on this device. Hydraulic and electric power are available for this model.
Welcome to get your free inquiry. We will reply to you in 12 hours!
