Electric winch is a commonly used lifting and pulling device in many engineering projects. Generally, for land construction, the most winch adopts electricity as power source. If necessary, power source of some engine winch machine could be hydraulic type and diesel type, we use to call this kind of winch as hydraulic winch and diesel winch.

Ellsen electrical winches are capable of handling large load capacities with variable speeds. Alternating current changes directions periodically. Pulling capacity is given as a reference only and does not include friction factors that will vary according to specific applications.

Electric winch has two basic function. Firstly, lifting loads. You can lift loads in vertical direction by using an electrical winch. Secondly, electric winch machine is able to pull loads in horizontal and slant function. Ellsen manufacturer provides you different types of electric winches according to your need. Our engine machine can be used as great helper in installing and tear down large and medium size concrete steel structure and machine equipment. And it is widely demand by road and bridge engineering equipment installation area including construction and installing company, metallurgy, mining, construction, chemical industry, hydropower, agriculture, military and transportation.

Product Detail

Structure and Features of Electric Winches

Electrical winches consist of five main parts, which is motor, coupling, brake, gear box and drum respectively. The five parts assembles in the same rack together. Electric winch has two obvious features. Firstly, it has great speed control performance according to high lifting altitude and heavy loads, which can make hook with loads decline in a extremely fast speed. And for accurate position loads and subtle loads, electric winch machine is able to adopt lower speed.

Ellsen Featured Electric Winch Machines

Here are the featured electric winches, according to their function and application, they are divided into six types. You can choose your own one with good price.

JM Slow Speed Electric Winch

Ellsen electric winch of high quality is for sale
Ellsen JM electric winch


JM Electric Winch

Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JM slow speed electric winch has one obvious character, it is gear reducer drive winch machine. Pulling, winding and drag are its basic ability. This type winch is widely used in construction area and installation project of the factory, bridge construction, ports and docks. It you have any loads and pulling task has to be done in boats and near coast, you can use it, too. When an electrical power winch is used in boats, ship, and near coast, it is in charge of anchor, towing and mooring task.

JK Fast Speed Electric Winch

Ellsen electric winch for sale
Ellsen JK electric winch


JK Electric Winch

Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JK type electrical winch machine can be used in many areas. Mainly, it can be used to lift and pull loads and material in construction and building operation activities. Besides, it can match with crane as main hoister, which is special winch for derrick, portal frame and hoist trolley. Its application covers construction industry, mine area and small equipment installation.

JKL Fast Speed Electric Piling Winch

Ellsen electric winch for sale
Ellsen JKL electric winch


JKL Electric Winch

Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JKL type electric winches is widely used in construction sites, factories and mines and port to carry loads vertically. Especially fit for free full punching piling task for bridge, port and foundational engineer construction. It has a special feature for JKL type electrical winch machine, which is spindle rotation.

JKD Electric Planetary Winch

electric winch for sale
Ellsen JKD electric winch


JKD Electric Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JKD type electric winch machines are new type winches that adopt planetary transmission. This type winching machine is widely used in lines including construction site, port, bridge and metallurgy. JKD series winch has many advantages, such as: compact structure, stable operation, easy operation, easy maintenance, low noise, long service life. Moreover, it is qualified only if winch machine conform China’s GB/T10055-1996 construction crane safety rules and national industry standard number JGJ88-92 file of winch safety technical specification requirements.

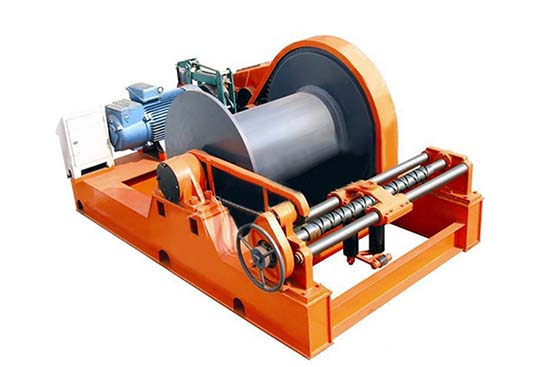

JMM Friction Type Electric Winch

Ellsen electric winch for sale
Ellsen JMM electric winch


JMM Electric Winch

Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

JMM type electric winch machine mainly adopts in large and super huge concrete, steel structure, long distance lifting and long distance pulling of winch wire and winch cable. It mainly demanded in bridge construction, port, harbor, large factory and mine and equipment installing of electric power project.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series  Electric Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JK series Electric Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series Electric Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
Technical Parameter of JKD Series Electric Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JKD0.75 7.5 100 9.3 3 900x340x400 165
JKD1.25 12.5 120 11 7.5 1140x400x450 315
JKD1.60 16 160 12.5 7.5 1200x400x480 350
JKD2.0 20 190 13 13 1400x470x548 510
Technical Parameter of JMM Series Electric Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
