Heavy duty winch

Heavy duty winch

Heavy duty winch is designed to drag and pull heavy loads. It is demanded in abundance of the installation and disassembling of many large and medium-sized concrete, steel structure and mechanical equipment. You can find it in ports, bridge building projects, wharfs and large mines and factories.

As engine winch machine, it is motivated by outside force (for example, a motor). Besides, it cannot move if there is no power motivated. The reason it can be controlled not act freely is that it is commanded by electromagnetic brake and lock brake. And only after the reducing speed by motors can the dish of wheel running, so that wire rope rolled on drum is able to pull, lift, and drag loads. Ellsen group will provide you five types of heavy duty winches. You can choose your winching machine according to your need.

Product Detail

Features of heavy duty winch

The common feature of all five types of heavy duty winches is all of them are able to lift, pull and drag heavy loads. But each type of heavy duty winching machine has its own character, and their rated capacity are different.

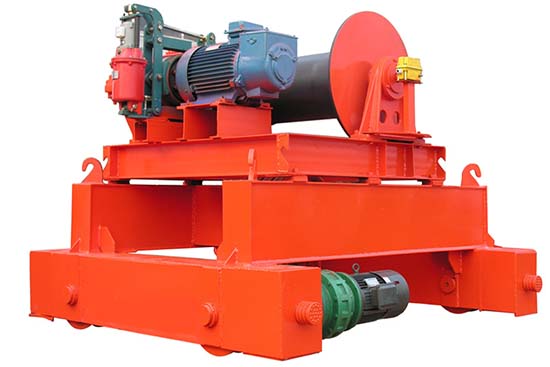

JM series heavy duty winch

Ellsen heavy duty winch
Ellsen JM heavy duty winch


JM Heavy Duty Winch

Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Name:*

Email:*

Phone

Message:*

JM series heavy duty winch has the biggest rated capacity, which is from 0.5 ton to 300 tons. And that means you can lift and pull loads of capacity heavier than 0.5 ton and lighter than 300 tons. Namely, the capacity covers near all types of loads. With a JM series heavy duty winch, you can lift and drag any weight you want. Moreover, if you have any needs of near coast or on ship lifting, anchoring and mooring task, a JM series heavy duty winch can take the job. All your need is to change a motor to make it being water proof, and use water resistant paint.

JMM series heavy duty winch

Ellsen heavy duty winch
Ellsen JMM heavy duty winch


JMM Heavy Duty Winch

Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

Name:*

Email:*

Phone

Message:*

The rated capacity of JMM series heavy duty winch is from 10 tons to 55 tons. And its rope capacity is from 1000 meters to 5000 meters, it has longer rope capacity than any other heavy duty winch, so that is has an obvious feather that JMM series heavy duty winch is more stable when it lifting loads. The reason why is that the longer the wire rope is, the more stable the speed of rope, as a result, the winch becomes more stable when you operating it.

Heavy duty mine winch

Ellsen heavy duty mine winch for sale
Ellsen heavy duty mine winch


Heavy Duty Mine Winch

Occasions:in/outside metal mine
Types of mine:
copper;coal;zinc;iron
Power supply:
220-690V,50/60HZ,3Phase

Accept Your Customization

Get a Free Quote

Name:*

Email:*

Phone

Message:*

Heavy duty mine winch is a unique heavy duty winch, for it is specialized heavy duty winch applied inside or outside a mine. The rated capacity of it is from 1 ton to 40 tons. If you have any loads needed to be pull and lifted outside or inside a mine, click our inquiry to get yourself one. And you should pay attention to what types of your mine, and we will make your customization winch based on the type of your mine.

Current maintenance of your heavy duty winch

Winch machine should maintain during daily use period, what you need to do is simple and easy. Firstly, clear dust in control closet, and check wire drawing, fasten it if you find any loose. Then, measure motor insulation and maintain it regularly.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series Heavy Duty Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JMM Series Heavy Duty Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
