Ellsen light duty winch for sale

Light duty electric winch

Light duty winch is commonly used in occasions that do not have to carry too much heavy loads. Ellsen light duty electric winch provides you three types of winching machine. And all their rated capacity controlled below 10 tons, you can choose what you want according to your need.

As other types winch machine, light duty winch is mainly powered by electricity, but it not limited by electric power, we provide you hydraulic winch and diesel oil driven winch if necessary. We will provide you features of each light duty electric winch in detail.

Product Detail

Features of Ellsen light duty electric winch

We have three types light duty electric winches to welcome you to choose. Firstly, we have JK series light duty electric winch, the rated capacity of it is from 0.5 ton to 10 tons. And it is special designed to meet the need of construction site, it can be used in derrick, portable frame and on cranes as main hoisting mechanism. Then, you can choose JKL model light duty electric winch, it can be used in construction site, port and factory to lift loads in vertical direction. Besides, it has a unique function that is to do punching and pile driving activity falling freely. Its rated capacity is from 2 tons to 10 tons. Finally, Ellsen manufacturing the lightest winch-JKD type light duty electric winch. Its rated capacity is from 0.75 ton to 2 tons. You can choose according to your need among the three models.

Ellsen light duty electric winch for sale
Ellsen JK light duty electric winch


JK Light Duty Winch

Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen light duty electric winch for sale

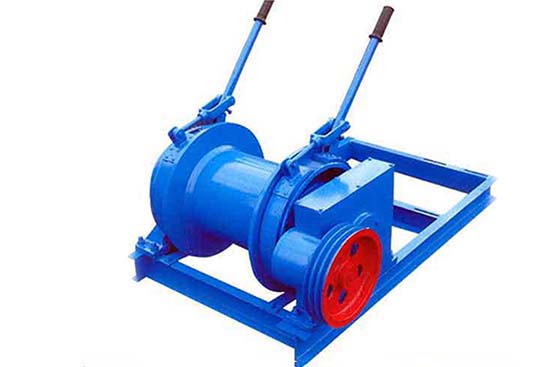

Ellsen JKL light duty electric winch


JKL Light Duty Winch



Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen light duty electric winch for sale
Ellsen JKD light duty electric winch


JKD Light Duty Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Advantages of Ellsen light duty electric winches

1. All the light duty winches supplied by Ellsen group have compact structure, and it adopts the advanced technology to make all winches having scientific structure.

2. All the winches is easy to maintain and operate.

3. Components of all winches have inventory, you will not wait to get your winch parts.

4. Winches noises in controlled lower 80 decibel according to China’s policy.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JK series Light Duty Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series Light Duty Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
Technical Parameter of JKD Series Light Duty Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JKD0.75 7.5 100 9.3 3 900x340x400 165
JKD1.25 12.5 120 11 7.5 1140x400x450 315
JKD1.60 16 160 12.5 7.5 1200x400x480 350
JKD2.0 20 190 13 13 1400x470x548 510
