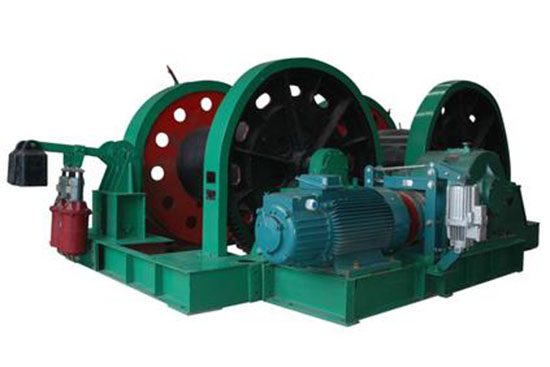

Ellsen mine winch for sale

Mine winch

Mine winch refers to electric winch that used in different kinds of mines. Winching machine can be set inner the mine or outer the mine according to you need. Generally, mine winch usually place in coal mine and different metal mines (copper mine, silver mine, iron mine, zinc mine). Winch set in and out mine is carry and drag minerals. According to the power system of mine winch, we have electric power winch and hydraulic type winch. And for the function of mine winch, we have four types of mine winches to let you make a choice.

Product Detail

We have common hoist mine winch, explosion proof mine winch, friction shaft winch and shaft sink mine winch. For common hoist mine winch, you can use it to do lifting and pulling tasks inside or outside your mine. You should pay attention not to use it in explosive environment. If you want to use a mine winch in explosive environment, why not try explosion proof mine winch? This types of mine winch has perfect explosive proof function. It has high standard PLC control system. And all the components confirm to hoist winch standard of China. If you want a double winch drum, friction type of mine winch may meet tour needs. Double winch drum helps loads do go and back movement. JZ type shafting sink winch is commonly used in metal mine and non-metal ores. This type of mine winch is take responsibility of the shafting task of shaft engineering, it can overhang excavating equipment including hanging scaffold, water pump, ram, compressed air cylinder and grouting pipe. Besides, it can tension stable rope or used in other lifting and pulling loads inside mine and on ground. Shafting sink winch has high lifting bearing and large rope, moreover, it can keep stable when operating.

Ellsen mine winch for sale
Ellsen mine hoist winch


Mine Hoist Winch

Speed: 1.3 m/s
Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm

Accept Your Customization

Get a Free Quote

Ellsen explosion proof mine winch for sale
Ellsen explosion proof mine winch


Explosion Proof Mine Winch

Width: 1000 mm
Speed: 2/2.5 m/s
Breaking force: 270 KN
Max.diameter: 20 mm

Accept Your Customization

Get a Free Quote

Ellsen mine winch for sale
Ellsen friction shaft sinking mine winch


Friction Shaft Sinking Winch

Work type: Friction
Number: 1
Pulling load : 250 KN
Diameter: 52 mm

Accept Your Customization

Get a Free Quote

Ellsen mine winch
Ellsen shaft sinking winch


Shaft Sinking Winch

Steel rope max static tensity: 100 KN
Rope capacity: 800 m
Steel rope diameter: 32 m
Motor power: 22 kw

Accept Your Customization

Get a Free Quote

Why choose Ellsen group as your supplier?

There are many mine winch suppliers in the world. There are many reasons why you are welcomed to choose a mine winch of any company. And here are the reasons why you are welcomed to choose Ellsen group. Firstly, Ellsen is the leading force of winch industry in China. We are professional. We have experienced selling and after sale service team, you will gain a great service. Then, for the quality of Ellsen mine winch. We promise to give you the best quality compared the price of other winch supplier. All mount of Ellsen winch is stable; and winch line is narrow, which means less noise when you use Ellsen mine winch. Last but not least, Ellsen winch has inventory, you will not wait too long until you get an Ellsen winch. Finally, for the price, Ellsen group will give you the most economical price for your mine winch. The reason why Ellsen mine winch is cheap is that we devotes ourselves to innovation of advanced technology. Welcome to get your free inquiry of Ellsen group, and we promises you the best quality and economical price.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Model TYPE Tensile
force of
wire rope
Wire
rope
Overall dimension The
whole
weight
No. Diameter Width Lifting
man
Lifting
material
Max.diameter Breaking
force
Speed Legnth Width Height
Pcs mm KN mm KN m/s mm kg
JTK-0.8×0.6 1 800 600 / 15 14 97.5 1.3 3×2.2×1.3 2100
JTK-1.0×0.6 1000 800 15 12 97.5 1.7 3.4×2.1×1.5 3300
JTP-1.2×1 1 1200 1000 15 21 14 137 2/2.5 5x5x2.75 9562
JTP-1.2×1.2 1200 1.5/1.9 5.2x5x2.75 9585
2JTP-1.2×0.8 2 1200 800 15 21 14 137 2.5/3.0 6.1x5x2.75 11700
2JTP-1.2×1.0 1000 1.5/1.9 6.1x5x2.75 11900
JTP-1.6×1.2 1 1600 1200 31 42 20 279 2/2.5 6.4×5.4×2.9 13538
JTP-1.6×1.5 1500 1.5/1.9 6.7×5.4×2.9 14128
2JTP-1.6×0.9 2 1600 900 31 42 20 279 3.0/4.0 7.1×5.4×2.9 16760
2JTP-1.6×1.2 1200 2/2.5 7.4×5.4×2.9 17370
JK-2×1.5 1 2000 1500 44 60 24 396.5 4.0/5.0 8.15×6.86×2.75 24955
JK-2×1.8 1800 2.5/3.2 8.4×6.86×2.75 25396
2JK-2×1 2 2000 1000 44 61 24 396.5 4.0/7.0 9.48×6.97×2.75 28955
2JK-2×1.25 1250 2.5/3.2 9.73×6.97×2.75 30355
JK-2.5×2 1 2500 2000 69 90 30 621 3.8/4.8 10.26×9.12×3.05 35200
JK-2.5×2.3 2300 3.0/3.4 10.56×9.12×3.05 36040
2JK-2.5×1.2 2 2500 1200 69 83 30 621 8.7/4.9 11.56×9.12×3.05 46325
2JK-2.5×1.5 1500 2.5/4.0 11.86×9.12×3.45 47752
JK-3×2.2 1 2500 2200 100 130 36 900 4.6/5.9 12.4×10.8×2.85 52540
JK-3×2.5 2500 3.0/4.1
JK-3.5×2.5 1 3500 2500 136 170 42 1230 5.4/6.7 14.18×10.65×3.95 73940
JK-3.5×2.8 3.5/4.8
2JK-3×1.5 2 3000 1500 100 135 36 900 5.9/10.0 14.1×10.8×3.45 58750
2JK-3×1.8 1800 3.0/4.7 14.7×10.8×3.45 60250
2JK-3.5×1.7 2 3500 1700 136 170 42 1230 6.7/12.0 15.9×10.65×3.95 77830
2JK-3.5×2.1 2100 3.5/5.3 16.7×10.65×3.95 79630
Model TYPE Tensile
force of
wire rope
Wire
rope
Overall dimension The
whole
weight
No. Diameter Width Lifting
man
Lifting
material
Max.diameter Breaking
force
Speed Legnth Width Height
Pcs mm KN mm KN m/s mm kg
JTK-0.8×0.6 1 800 600 / 15 14 97.5 1.3 3×2.2×1.3 2100
JTK-1.0×0.6 1000 800 15 12 97.5 1.7 3.4×2.1×1.5 3300
JTP-1.2×1 1 1200 1000 15 21 14 137 2/2.5 5x5x2.75 9562
JTP-1.2×1.2 1200 1.5/1.9 5.2x5x2.75 9585
2JTP-1.2×0.8 2 1200 800 15 21 14 137 2.5/3.0 6.1x5x2.75 11700
2JTP-1.2×1.0 1000 1.5/1.9 6.1x5x2.75 11900
JTP-1.6×1.2 1 1600 1200 31 42 20 279 2/2.5 6.4×5.4×2.9 13538
JTP-1.6×1.5 1500 1.5/1.9 6.7×5.4×2.9 14128
2JTP-1.6×0.9 2 1600 900 31 42 20 279 3.0/4.0 7.1×5.4×2.9 16760
2JTP-1.6×1.2 1200 2/2.5 7.4×5.4×2.9 17370
JK-2×1.5 1 2000 1500 44 60 24 396.5 4.0/5.0 8.15×6.86×2.75 24955
JK-2×1.8 1800 2.5/3.2 8.4×6.86×2.75 25396
2JK-2×1 2 2000 1000 44 61 24 396.5 4.0/7.0 9.48×6.97×2.75 28955
2JK-2×1.25 1250 2.5/3.2 9.73×6.97×2.75 30355
JK-2.5×2 1 2500 2000 69 90 30 621 3.8/4.8 10.26×9.12×3.05 35200
JK-2.5×2.3 2300 3.0/3.4 10.56×9.12×3.05 36040
2JK-2.5×1.2 2 2500 1200 69 83 30 621 8.7/4.9 11.56×9.12×3.05 46325
2JK-2.5×1.5 1500 2.5/4.0 11.86×9.12×3.45 47752
JK-3×2.2 1 2500 2200 100 130 36 900 4.6/5.9 12.4×10.8×2.85 52540
JK-3×2.5 2500 3.0/4.1
JK-3.5×2.5 1 3500 2500 136 170 42 1230 5.4/6.7 14.18×10.65×3.95 73940
JK-3.5×2.8 3.5/4.8
2JK-3×1.5 2 3000 1500 100 135 36 900 5.9/10.0 14.1×10.8×3.45 58750
2JK-3×1.8 1800 3.0/4.7 14.7×10.8×3.45 60250
2JK-3.5×1.7 2 3500 1700 136 170 42 1230 6.7/12.0 15.9×10.65×3.95 77830
2JK-3.5×2.1 2100 3.5/5.3 16.7×10.65×3.95 79630
Technical Parameter of  Friction Shaft Sinking Winches
Model Steel wire rope Steel
rope
speed
(m/min)
Steel
rope
capacity
Motor
power
Overall
Dimensions
Weight
(not
include
motor
and
control
part)
Power
supply
Work
type
Number Pulling
load
(KN)
Diameter
(mm)
fast slow m Type kw mm kg 3 phase (v)
JZM-25/800 Friction 1 250 52 0.1 0.05 800 YZR280M-8 55 6368x3102x2290 19652 380
2JZM-25/800 Friction 2 250 52 0.05 800 YZR280M-6 75 6368x5612x2290 37000 380
2JZM-25/1350 Friction 2 250 52 0.05 1350 YZR280M-6 75 6730x5612x2470 38200 380
JZM-40/1350 Friction 1 400 60.5 0.1 0.05 1350 YZR315S-8 75 7660x3790x2850 37000 380
Technical Parameter of JZ Series  Shaft Sinking Winches
Model Steel
rope
max
static
tensity
Rope
capacity
Steel
rope
speed
Steel
rope
diameter
Motor
power
Overall
Dimensions
Overall
weight
Power
supply
KN m Fast slow mm kw mm kg 3 phase (v)
JZ-10/800 100 800 0.075 0.038 32 22 3283x2570x1770 7000 380
JZ-16/800 160 800 0.075 0.038 40 37 3358x3200x2240 11480 380
JZ-16/1000 160 1000 0.075 0.038 40 37 3650x3200x2240 12680 380
JZ-16/1320 160 1320 0.075 0.038 40 37 3900x3200x2240 13500 380
JZ-16/1600 160 1600 0.075 0.038 40 45 3827x3623x2500 14400 380
JZ-25/1320 250 1320 0.075 0.038 52 45 4062x3623x2500 16035 380
JZ-25/1600 250 1600 0.075 0.038 52 45 4625x4242x3166 17100 380
JZ40/1800 400 1800 0.075 0.038 60 75 3920x3200x2240 27000 380
2JZ-5/400 2×50 2×400 0.075 0.038 32 37 3115x2579x1300 6000 380
2JZ-5/400 2×100 2×600 0.075 0.038 32 37 4400x3400x1740 11250 380
2JZ-5/400 2×100 2×800 0.075 0.038 32 37 4300x3440x1740 13560 380
2JZ-5/400 2×160 2×800 0.075 0.038 42 55 5473x3440x2240 20840 380
2JZ-5/400 2×160 2×1000 0.075 0.038 42 55 5473x3690x2240 21072 380
2JZ-5/400 2×160 2×1320 0.075 0.038 42 55 5473x3675x2240 22712 380
2JZ-5/400 2×250 2×1320 0.075 0.038 52 75 6310x3840x2500 29700 380
