Miniature winch

Miniature winch

Miniature winch belongs to the old type lifting device. However, it has irreplaceable function in the machine history. Today, with the development of technology,  winch machine plays a more important role than before. In the past, winch is mainly operated by manual power, while it powered by electricity today. With more kinetic energy provide by electricity, winch machine can be used in many occasions including construction sites, bridge building project and wharf. Miniature type winch machine has an obvious feature that its motor and winch rope are in the same transmission shaft. This structure makes winch machine small and easy carry.

Features of Ellsen miniature winch

Comparing to other types winch machine manufactured by Ellsen group, the outstanding feature of miniature winch is its short and compact structure. For the compact structure, miniature winch machine is space saving and money saving. Simple but scientific design makes your winch machine easy to operate. And the brief and clear operation introduction makes your winch easy to operate. Anyway, you will get convenience and less trouble if you choose miniature winch supplied by Ellsen group.

Ellsen miniaure winch for sale

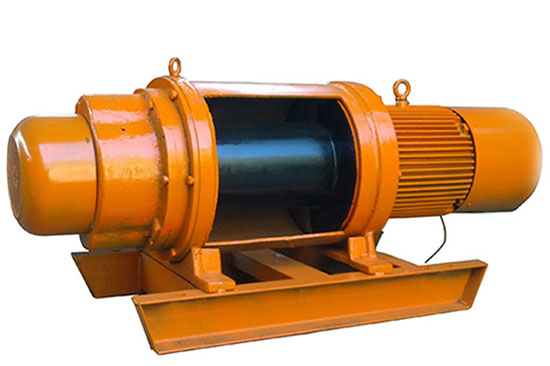

Ellsen miniature winch


Miniature Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Attentions should pay to when you operate a miniature winch machine

You should pay attention to any electricity powered winch machine when use it. Next are the attentions you should pay when you operate a miniature winch. Firstly, make sure your winch rope is of high strength and no broken or any abrasion. If you find any non- qualified winch rope, you should replace it. Then, during break time and off duty time, remember put down loads into ground. Hanging loads is forbidden. Lastly, never cross winch machine or winch rope when the winch is working.

Ellsen miniature winch for sale
Ellsen miniature winch

Why choose Ellsen group?

Ellsen group promises to give you the best quality and service forever. And you are welcomed anytime anywhere if you has any question, contact us, we will solve it for the first time. Then, Ellsen is the leading brand in winch area in China, we are professional. And for years winch service experiences, we know what you want and we will provide it to you for the first time in an economical way.

Technical Parameter of JKD Series Electric Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JK0.75D 7.5 100 9.3 3 900x340x400 165
JK1.25D 12.5 120 11 7.5 1140x400x450 315
JK1.60D 16 160 12.5 7.5 1200x400x480 350
JK2.0D 20 190 13 13 1400x470x548
