Ellsen pulling winch for sale

Pulling winch

Pulling winch belongs to a kind of traditional lifting and pulling device. In the past, pulling cable winch operated by human power. With the development of technology, today’s winch machine is powered by electricity or hydraulic power, which improves the working efficiency highly. As the most professional winches supplier, Ellsen manufacturer devotes to winches business for decades. To benefit your production and working efficiency, Ellsen improves pull winches performance and makes it different models to work on various occasions.

Each model pull winch is design to handle different lifting task, it can be make into different size and lift up various tons loads. For ordinary pulling and lifting duty, you can choose from JM pulling cable winches, JK pulling winch, JKL pull winches, JKD pulling winches, JMM pulling winches and mine pulling winches.

Product Detail

Features of Ellsen pulling winches

The structure of Ellsen pulling winch is similar, some of them may be different from the featured products. The common winch consist of winch mount, winch rope, winch drum, reducer and motor. Each type Ellsen pulling winch can be installed with electric or hydraulic power system, which makes you  electric cable pulling winch or hydraulic pulling winch. Pulling winch with electric power system suits for lifting tasks on land, or common industry. Hydraulic power winch usually with huge remote power, which can handle more heavy loads. You can choose the power you need, or contact us for better advice. Here are the introduction of each type of Ellsen winch machine.

JM pulling winch

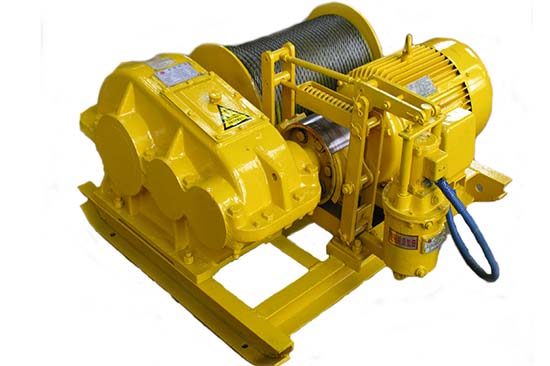

Ellsen pulling winch for sale
Ellsen JM pulling winch


JM Electric Pulling Winch

Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JM pulling winch includes motor, coupling, brake, gear box and winch drum, all the winch parts are installed in winch mount. Pulling winch also call rope winch and lifting winch. According to heavy duty and busy lifting and pulling task, pulling winch of Ellsen group is able to adjust the working frequency, and it can deepening fast with empty hook. And when put or install sensitive material, this type winch can decline lightly and slowly. Because of the compact structure, high versatility and heavy rated capacity, it is widely used in construction, water conservancy, forestry, mining, port to lift or drag loads. Moreover, it can also as assort equipment to match with automatic production line of modern electronic control.

JK pulling Electric winch

Ellsen pulling winch for sale
Ellsen JK pulling winch


JK Pulling Winch

Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

This type of winch can be used as JM pulling winch to pull, lift and drag loads in vertical movement and horizontal movement. Moreover, it can match with derrick, portable frame and crane as the main hoister. If you have any needs to match crane mentioned above, why not try JK pulling winch?

JKL pulling winch

Ellsen pulling winch for sale
Ellsen JKL pulling winch


JKL Pulling Winch

Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

It has the same structure as JM pulling winch, and JKL type winch machine can match a hand shank, which helps control better. Except lift and carry loads, it can do the work as an impacting driller to do pile task in a free falling way. If you not only want a winch to carry loads, but also want a machine to do pile work, Ellsen JKL winch is your best choice.

JKD pulling winch

Ellsen pulling winch for sale
Ellsen JKD pulling winch


JKD Pulling Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JKD pulling winch belongs to a special designed pulling winch. It has that shortest size, so that it helps a lot in space saving. Besides, its driven motor and winch rope are in the same axis, it helps save room, you can use it in your home or garage.

JMM pulling winch

Ellsen pulling winch for sale
Ellsen JMM pulling winch


JMM Pulling Winch

Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

This type of winch machine is special designed for large and super huge construction site, long distance lifting and pulling activity for steel structure and steel cable. Its rated winch rope capacity is 1000m to 5000m, you can choice it if you have any long distance and large construction project. The winch rope has constant speed and it is stable when transport extreme heavy loads.

Mine pulling winch

Ellsen pulling winch for sale
Ellsen mine pulling winch


Mine Pulling Winch

Speed: 1.3 m/s
Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm

Accept Your Customization

Get a Free Quote

Mine pulling winch can be used inside or outside metal mine. You can use it in coal mine, iron mine, copper mine and zinc mine. You are welcomed to tell us what kind of mine you are going to use it.

Crane Winch Maintenance Tips

Due to the potential risk for injury, winches must be properly maintained. It’s important to follow your manufacturer’s maintenance instructions in addition to these general guidelines for safe operation.

  • Inspect your winch before and after each use. If the wire rope has become damaged, frayed or kinked, it’s important to replace it right away.
  • Keep the winch, wire rope and remote control clean. If necessary, unwind the winch completely, and use a clean rag to remove any dirt and debris.
  • When using a vehicle-mounted winch, be sure to check and maintain your vehicle battery and its cables. Operating the winch for long periods of time puts extra strain on the battery.
  • Ensure your winch remains in proper working condition through regular maintenance. Conduct routine load testing to ensure you know just how much weight the machine can handle.
  • Regularly inspect your winch, and lubricate according to the manufacturer’s instructions.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series  Pulling Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JK series Pulling Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series Pulling Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
Technical Parameter of JKD Series Pulling Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JKD0.75 7.5 100 9.3 3 900x340x400 165
JKD1.25 12.5 120 11 7.5 1140x400x450 315
JKD1.60 16 160 12.5 7.5 1200x400x480 350
JKD2.0 20 190 13 13 1400x470x548 510
Technical Parameter of JMM Series Pulling Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
