Small winch

Small winch

Small winch is designed to meet the need of narrow places or small and medium project. Ellsen group provide you two types of small winches. And you can choose your own winch between JKD model small winch and small capstan winch.

Ellsen small winching machine is always of high quality of good prices. Both of the two types of winch machine have compact and scientific structure. Because of improvement of technology, you can get on with good price.

Product Detail

Differences of two types of small winch

1. Power. For JKD type small winch, we provide you electricity power, and we will provide hydraulic power if necessary. And for small capstan winch, hydraulic power is the main motivation.

2. Occasions. JKD model small winch used to use in construction project in inner land, while capstan winch is usually used in ships and coast.

3. Water proof. JKD type small winch does not have water proof function, while capstan has to be water-proof.

4. Motor. JKD type small winch adopts IP65 motor, while capstan small winch adopts IP56 motor. Compare to IP65 motor, IP56 motor is able to resist water.

5. Speed. JKD type small winch has single speed, while capstan small winch has single speed, double speed and three speed.

6. Paint. Paint of JKD small winch cannot stop water erosion, however, capstan winch can protect winch part from water erosion

small winch

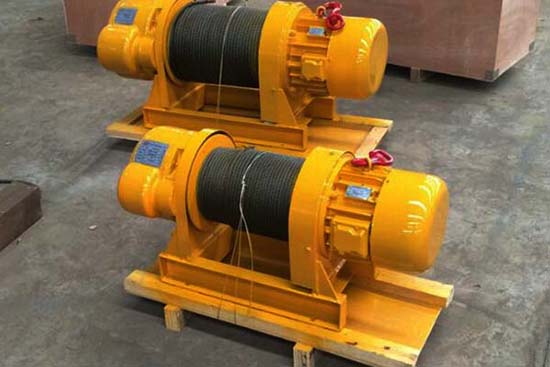

Ellsen Small JKD Winch


JKD Small Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen small winch for sale
Ellsen small winch


Small Capstan Winch

Type: D(Y)J5
Warping load: 50 KN
Warping speed: ≥18 m/min
Wire Dia: φ11 mm
Electric: 3/1.2 kw

Get a Free Quote

Advantages of small winches

Thought JKD type winch and capstan winch have many differences, they have some same advantages. Here will be listed in details.

1. Motors of the two small winches are famous brand of China or French. We promise you the high quality of your winch motor.
2. No matter common paint or water proof paint, all paint of your small winching machine is neat and clean.
3. Both of the two type winching machine produce less noise than any other brand winches.
4. Welding lines of two winches are small, which makes lower noise and higher balance of your winches.
5. Both of them are easy carry and place to anywhere you want.
6. Both of them are space saving and cost saving.
7. Both of them are easy to maintain and operate.

Why choose Ellsen manufacturer?

There are many reasons that you may choose Ellsen group as your supplier. The reasons are divided into three aspects in detail. Firstly, Ellsen service is good. You will get a warm service no matter in your purchasing process or the after sell service. Because of the good service Ellsen provide, we win many praise from customers like you, and build long term cooperation. Then, Ellsen is the professional winch manufacturer, we have experiences in many area only if it related to winch machine, and we promise you to solve all your problems of choosing and assembling a winching machine. Last but not the least, Ellsen devotes itself to small winch area for years, and we try our best to improve winch technology to let you get a high quality machine with a good price.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JKD Series Small Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JKD0.75 7.5 100 9.3 3 900x340x400 165
JKD1.25 12.5 120 11 7.5 1140x400x450 315
JKD1.60 16 160 12.5 7.5 1200x400x480 350
JKD2.0 20 190 13 13 1400x470x548 510
Technical Parameter of Small Winch
Type Warping load (KN) Warping speed(m/min) Wire Dia(mm) Motor power (kw)
Electric Hydraulic
D(Y)J5 5 ≥18 φ11 3/1.2 5.5
D(Y)J10 10 ≥18 φ11 4.3/1.7 7.5
D(Y)J20 20 18 φ15 7.5/7.5/5 15
D(Y)J30 30 ≥18 φ17.5 16/16/11 18.5
D(Y)J40 40 ≥18 φ20.5 16/16/11 18.5
D(Y)J50 50 ≥18 φ20.5 22/22/16 30
D(Y)J70 70 ≥15 φ26 30/30/22 45
D(Y)J100 100 ≥15 φ28 45/45/30 55
D(Y)J120 120 ≥15 φ32.5 60/60/45 75
D(Y)J150 150 ≥15 φ36.5 60/60/45 90
D(Y)J200 200 ≥15 φ40 75/75/36 110
D(Y)J250 250 ≥12 φ46 75/75/36 110
