Ellsen 50 tons winch for sale

50 tons winch

Ellsen manufacturer provides you 50 tons winch to pull and drag heavy loads in vertical and horizontal movement. You can use it in construction sites, bridge building projects, port, wharf, and installer, even power installation. You can choose three types of 50 tons winch according to your need.

Product Detail

Features of Ellsen 50 tons winches

You can choose three types of 50 tons winches provide by Ellsen group. Firstly, you can choose JM 50 tons winch if you want to get a double use winch machine. You can use it on land to do lift and pull works in construction sites and bridge building projects. When your JM winch machine used on ships, it plays an important role to anchor and moor.

Ellsen 50 tons winch for sale

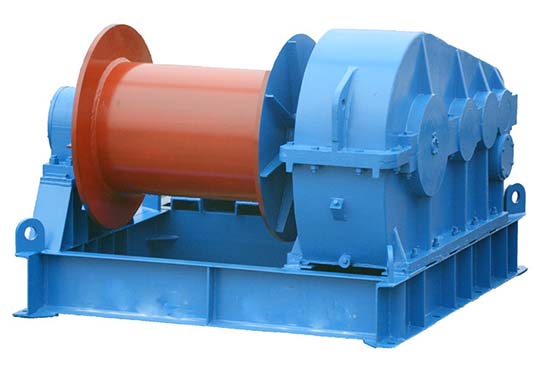

Ellsen JM 50 tons winch


JM 50 Tons Winch

Loading capacity: 50 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JMM 50 tons winch belongs to friction type winch. Its winch rope does not tie to winch drum when it works. It transports and pulls loads by the friction between winch drum and winch rope. The working principle of 50 tons winch is just like movement of belt and pulley. JMM type winch has ratchet stop device, which makes winch drum stops anywhere you want. This type friction winch has one unique advantage, its motor can move under no load condition and it has small starting torque. Besides, driven motor does not need inverting, so the power grid will have a balance load. Friction clutch prevent actuator from damage.It is  forbidden to use friction winch as material hoist in construction site.

Ellsen 50 tons winch for sale
Ellsen JMM 50 tons winch


JMM 50 Tons Winch

Loading capacity: 50 t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

Air winch has short size and light weight. Reducer and motor of air winch connects winch drum respectively. It can realize stepless speed regulation. And you can operate it by hand if there is no compressed air.

Ellsen air winch for sale
Ellsen 50 tons air winch


50 Tons Air Winch

Rated tension: 50 KN
Rope speed: 13 m/min
Rope diameter: 19 m
Air pressure: 0.62-1.0
Size: 1810*890*910
Weight: 1090 kg

Get a Free Quote

Why choose Ellsen manufacturer?

Firstly, Ellsen is the leading force of winch business in China, and we are professional in the sale and after sale service of winch machine. Then, you will get a high quality winch machine with the cheapest price. Thirdly, all models of winch you order has inventory, you will not wait a long time before you get your winch machine.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series 50 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JMM Series 50 Tons Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
Model Rated Tension(KN) Rope speed(m/min) Rope diameter(mm) Rope capacity(m) Air pressure(Mpa) Size(mm) Weight(kg)
QJH50PKMBG-19-300 50 13 19 300 0.62-1.0 1810*890*910 1090
QJH50PKMBG-16-300 30 20 16 300 0.62-1.0 1750*970*887 650
QJH50PKMBG-14-300 20 18 14 300 0.62-1.0 1522*970*858 550
QJH50PKMBG-28-300 100 7 28 300 0.62-1.0 1780*1280*1220 1900
