2 tons winch

2 tons winch

2 ton winch is winch machine rated capacity of 2 tons. According to power system, Ellsen group provides you electricity 2 tons winch and hydraulic 2 tons winch. If you have any special need, we will provide you manual 2 tons winch. No matter what series of 2 ton winch you prefer, Ellsen group promises to give you best quality with cheapest price.

Product Detail

Features of Ellsen 2 tons winches

You may choose your 2 ton winch among six models of Ellsen winches. All the winches provide you electricity power and hydraulic power. You can choose what power system you want, and for capstan, we provide you manual power. Please tell us what power system and winch model when you contact us. The reason why you are welcomed to do this is to save your purchasing time and raise the trade efficiency.

Ellsen 2 tons winch for sale

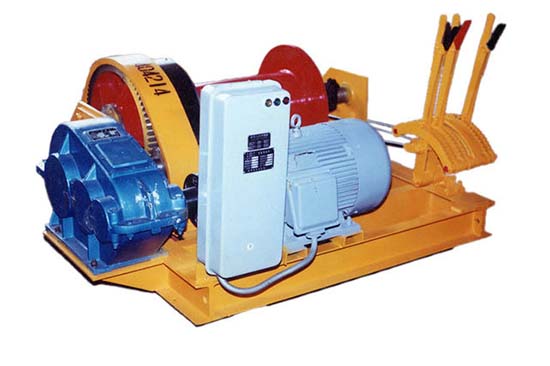

Ellsen JM 2 tons winch


JM 2 Tons Winch

Loading capacity: 2 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 2 tons winch for sale
Ellsen JK 2 tons winch


JK 2 Tons Winch

Loading capacity: 2 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 2 tons winch for sale
Ellsen JKL 2 tons winch


JKL 2 Tons Winch

Loading capacity: 2 t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen 2 tons winch for sale
Ellsen JKD 2 tons winch


JKD 2 Tons Winch

Loading capacity: 2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JM type 2 tons winch is a kind of amphibious winch. When it is used in land, it play an important role in lifting and pulling heavy loads in vertical and horizontal movement. While it used on ships or coast, it takes place marine winch to do anchor and moor task. JK type winch refers to winch that can be used to match with derrick and portable frame to play a main hoister role. Of course, it can lift and pull loads in construction sites and bridge building project. If you want your winch machine take responsibility of pile driver, you can choose Ellsen JKL type winch machine. JKL winch machine can do piling works and common lifting and pulling task. If you are bothered by limited space, you can choose JKD type winch machine, which save your space and do heavy lifting and pulling duty. Ellsen 2 tons mine winch is designed to solve your lifting and pulling problems inside or outside your metal mine. You can place your 2 tons mine winch in copper mine, zinc mine and iron mine. 2 tons capstan of Ellsen manufacturer is to help you do anchoring and mooring task, you can choose stand type and horizontal type capstan with single speed, double speed and three speed.

Why choose Ellsen as your supplier?

There are many reasons you may choose a supplier to get your 2 ton winch machine, but why Ellsen. There are the main reasons why you are welcomed to choose us. Though Ellsen group provides you cheapest price in 2 tons winch machine, we promise that you will get best quality. And Ellsen group is professional, who win good reputation in winch industry in China. You will get a warm service in Ellsen.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series  2 Ton Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JK series 2 Ton Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series 2 Ton Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
Technical Parameter of JKD Series 2 Ton Winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JKD0.75 7.5 100 9.3 3 900x340x400 165
JKD1.25 12.5 120 11 7.5 1140x400x450 315
JKD1.60 16 160 12.5 7.5 1200x400x480 350
JKD2.0 20 190 13 13 1400x470x548 510
