Hydraulic winches of Ellsen stands out for its excellent performance and compact size made possible by the special design in which all mechanical and hydraulic parts are inside the winch drum. The winches in this series all have hydraulic motor-driven units with a fixed displacement axial piston motor type and an integrated balancing valve unit for controlling the load while it is descending, as well as a selector valve for opening the integrated motor brake. As a result, the rope can be easily and quickly wound clockwise or counterclockwise, simply by rotating the load control valve. The generously proportioned negative lamellar brake was designed to withstand very high braking torques.

Different from manual winch motives by hand and human labor, electric winch driven by electricity, hydraulic winch is motivated by hydraulic equipment. When hydraulic winch machine provide power, prime mover will drive hydraulic pump and transport working oil into hydraulic cylinder or hydraulic motor to motivate relevant mechanism. Winch machine can change speed by liquid flow that input into execute link. Hydraulic drive has many advantages, firstly, it has large transmission ratio, which can realize continuously viable in broad range. Besides, it has compact structure and stable turning.

Product Detail

Ellsen Hydraulic Winch of Different Types

According to application and function of winch machine, Ellsen winch manufacturer provides you seven types of hydraulic winches for sale. You can choose your own one based on your need. No matter which one you choose, Ellsen promises you the best quality and cheap hydraulic winch machine.

JM slow speed hydraulic winch

Ellsen hydraulic winch for sale
Ellsen JM hydraulic winch

JM Hydraulic Winch

Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JM slow speed hydraulic winch has one obvious character, it belongs to gear reducer motivate. Hydraulic power provides more power than electricity. It rated loads is from 0.5 ton to 300 ton. With it great loads, it is widely used in many occasions including construction site, port, bridge building project. Even in power engineering project and assembling industry it plays an important role. Besides, hydraulic power winch makes it more suitable for anchoring and mooring. If you want to pull and lifting loads both on land and near coast, JM type hydraulic winch will be your best choice.

JK fast speed hydraulic winch

Ellsen hydraulic winch for sale
Ellsen JK hydraulic winch


JK Hydraulic Winch

Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min;
(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JK type hydraulic winch is special designed for construction site. Its rated loads is 0.5 ton to 10 tons. Light duty makes fast speed possible. It is fit for portable frame and crane as a necessary lifting part, it is assembled as lifting trolley. If you have need for fast speed lifting and match winch machines with your crane and derrick, JK type fast speed hydraulic winch will be your best choice. And Ellsen will give you the best price and high quality winch.

JKL fast speed hydraulic piling winch

Ellsen hydraulic winch for sale
Ellsen JKL hydraulic winch


JKL Hydraulic Winch

Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JKL type hydraulic winch is suitable for vertical lifting, and because it rated loads is 2 tons to 10 tons, fast speed lifting is possible. If you have any need of free fall punching pile driving, JKL type fast speed hydraulic pilling winch will be your best choice. Of course, it can carry loads in both vertical and horizon direction.

JKD hydraulic planetary winch

Ellsen hydraulic winch for sale
Ellsen JKD hydraulic winch


JKD Hydraulic Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

JKD type hydraulic planetary winch is designed to meet the needs of modern factory, it has scientific structure and short size. It is widely demanded in construction site, bridge building project and metallurgical machinery. If you want a small size, portable and space saving hydraulic- winch, JKD hydraulic winch will be your best choice.

JMM friction type hydraulic winch

Ellsen hydraulic winch for sale
Ellsen JMM hydraulic winch

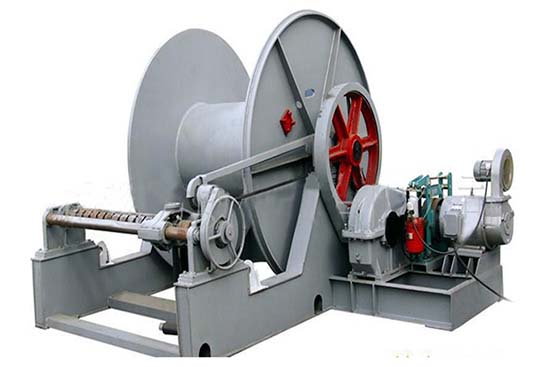

JMM Hydraulic Winch

Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase

Get a Free Quote

JMM type hydraulic winch has rope capacity of 1000m to 5000m, long rope capacity makes it stable in lifting loads, which is suitable for huge construction project like electric engineering project, bridge building, large factory and mine.

Small hydraulic winch

Ellsen hydraulic winch for sale
Ellsen JKD hydraulic winch


Small Hydraulic Winch

Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

Get a Free Quote

Ellsen small hydraulic winch for sale
Ellsen small capstan hydraulic winch


Hydraulic Capstan  Winch

Type: D(Y)J5
Warping load: 50 KN
Warping speed: ≥18 (m/min)
Wire Dia: φ11 (mm)
Electric: 3/1.2 (kw)

Get a Free Quote

Ellsen manufacturer provides you two types of small hydraulic winch. You can choose between gypay winch and standing capstan. Both of them have three speed including single speed, double speed and three speed. You can choose your own speed and type of small hydraulic winch.

Working Principles of Hydraulic Winches

Working principle of hydraulic winch is as followings: firstly, for raising process, when break holds winding drum tightly, planetary cannot revolution. And it rotate under the drive of center wheel, by which it makes inner gear driving drum to lift loads. When hydraulic winch system raising loads, the instantaneous process that hoisting loads speed up from idle state to stable speed is call dynamic process. Inertial force direction and lifting loads direction are the same during lifting movement, and in this way which increase the tension of wire rope.

During dynamic process, brake braking drum, both drum and inner gear cannot move, planetary make revolution and self- rotation at the same time, all the hydraulic winch parts works together to drive drilling tools. The process that winch machine parts from constant motion slow down speed to static called lifting brake process. Because that inertia force produced by slow down speed movement has opposite direction with lifting loads so that tension of wire rope is reduced.

Decline launch process. When expansion brake and band type brake are loose, drum is in a free state. It is the self –weight of drilling tools that drives drum to lower drilling tool. The process that loads decline from idle to stable state is called decline launch process.

Decline brake process. Winch machine drives suspended loads declining in a constant speed, and it makes loads decline from constant speed to idle speed, the process is called decline brake process. At this moment, inertial force and lifting loads have the same direction which makes winch rope tension increasing.

Welcome to get your free inquiry. We will reply to you in 12 hours!

Name:*

Email:*

Phone

Message:*

Parameters

Technical Parameter of JM Series  Hydraulic winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JM1 10 15 100 9.3 Y112M-6 3 620x701x417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
JM2 20 16 150 13 Y160M-6 7.5 945x996x570 550
JM3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
JM5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
JM5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
JM5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
JM8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
JM10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
JM10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
JM12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
JM13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
JM16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
JM20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
JM25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
JM32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000
Technical Parameter of JK series Hydraulic Winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JK0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
JK1 10 22 100 9.3 Y112M-4 4 620x701x417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
JK2 20 24 150 13 Y132M-4 7.5 945x996x570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100
Technical Parameter of JKL series Hydraulic winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JKL2 20 30 150 13 Y180L-6 15 1370x1650x1210 1200
JKL3 30 30 200 15 Y200L-6 22 1690x1740x1200 1800
JKL5 50 30 250 21 Y225S-6 37 2300x2100x1650 3000
JKL6 60 36 250 24 Y280S-6 45 2350x2100x1650 3200
JKL8 80 29 250 26 Y280M-6 55 2440x2500x1800 5500
JKL10 100 29 250 28 Y315S-6 75 2590x2540x1800 5800
Technical Parameter of JKD Series Hydraulic winch
Model Rated load Rope capacity Rope diameter Motor power Overall Dimensions Overall weight
KN m mm KW mm KG
JK0.75D 7.5 100 9.3 3 900x340x400 165
JK1.25D 12.5 120 11 7.5 1140x400x450 315
JK1.60D 16 160 12.5 7.5 1200x400x480 350
JK2.0D 20 190 13 13 1400x470x548 510
Technical Parameter of JMM Series frictional Hydraulic winch
Model Rated
load
Rated
speed
Rope
capacity
Rope
diameter
Motor
type
Motor
power
Overall
Dimensions
Overall
weight
KN m/min m mm KW mm KG
JMM10 100 10 4800 30 YZR225M-6 30 1980x2650x850 6000
JMM16 160 11 1000 34.5 YZR225M-6 45 3350x1920x1320 9500
JMM20 200 11 3600 39 YZR280S-6 55 3500x1960x1320 10000
JMM32 320 10 3200 52 YZR280M-6 75 4330x2350x1760 16000
JMM55 550 5 2000 60 YZR280M-6 75 5000x2800x1900 22000
